MAKINO F5

Press Components and Sub Assemblies for Engineering and Automobile Industries

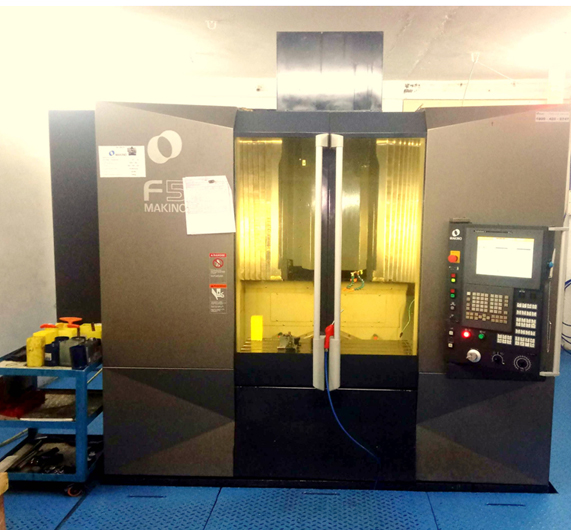

F5 VMC - MAKINO F5
Table Size	1050 x 510
Travel (X x Y x Z)	1050 x 510 x 510
Load Capacity	800 Kg.
R.P.M.	20,000
Accuracy	8 microns
Blum Tool Length Measurement systems	2 microns REPEATABILITY

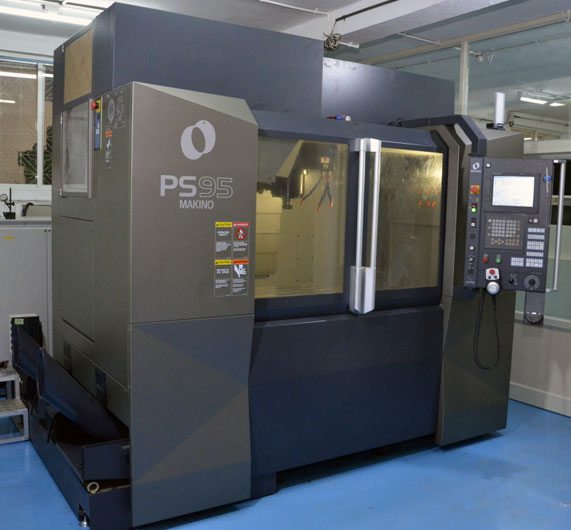

PS95 VMC - MAKINO

With the Makino Machining Centre it offers a unique blend of power, speed, precision, efficiency, flexibility and productivity. The basic machine design incorporates a heavy cast iron construction for stiffness, rigidity and precision.

PS95 VMC - MAKINO
TABLE SIZE	1170 x 510
TRAVEL (X x Y x Z)	920 x 510 x 460
LOAD CAPACITY	800 Kg.
R.P.M.	12,000
TORQUE	180 Nm

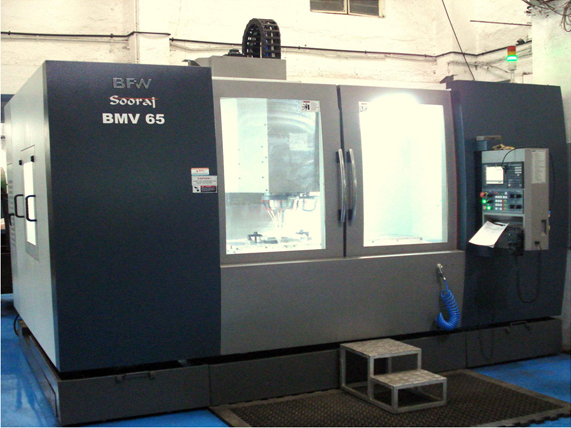

Sooraj VMC - BFW

Sooraj VMC - BFW
Table Size	1170 x 510
Travel (X x Y x Z)	1280 x 700 x 650
Load Capacity	1500 Kg.
R.P.M.	8,000
Controller	MITSUBISHI

U6 Wire EDM - MAKINO

Makino Wire Cut gives a 3µRz surface finish in 3pass.
Wire Diameter – dia 0.25 to dia 0.10
Positional Accuracy - + 3µ
Vertical Accuracy - + 3µ

U6 WireEDM MAKINO	L x W x H
TABLE SIZE MAX. WORKPIECE SIZE	1000 x 800 x 400
TRAVEL (X x Y x Z)	650 x 450 x 420
Pitch Accuracy	± 0.008

U3 WireEDM MAKINO

U3 WireEDM MAKINO	L x W x H
TABLE SIZE MAX. WORKPIECE SIZE	630 x 450 x 250
TRAVEL (X x Y x Z)	400 x 300 x 220
Pitch Accuracy	± 0.005

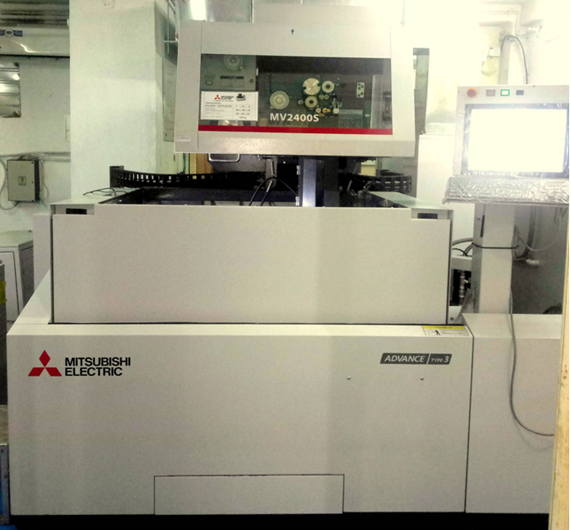

WireEDM MITSUBISHI

WireEDM MITSUBISHI	L x W x H
TABLE SIZE MAX. WORKPIECE SIZE	1000 x 600 x 300
TRAVEL (X x Y x Z)	600 x 400 x 300
Pitch Accuracy	± 0.005

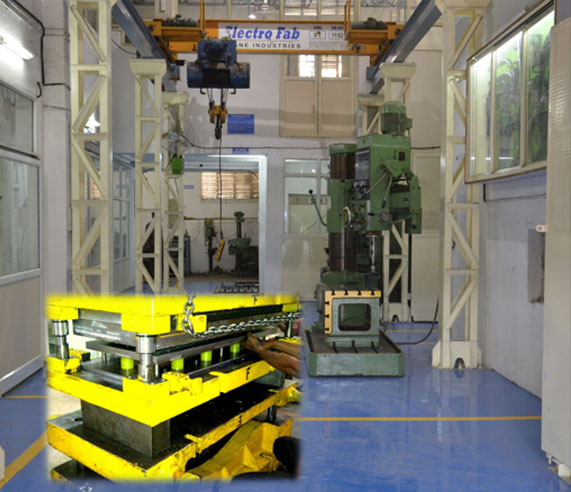

TOOL ROOM ASSEMBLY SHOP

• With over 27 years of experience in the Automotive Industry, we continue to provide Precision and High Quality work.
• We have successfully developed over 1200 tooling's. Specialized in Progressive Tools, Press Tools, Moulds and Die Casting Dies.
• We have well equipped 1. Tool Room. 2. Design Department. 3. Assembly Shop. 4. Machining Shop. 5. Press Shop.

S. No.	Type of Machines & Description	Make	Bhosari unit
1.	MAKINO VMC M/C -1170 x 510 x 460 -12,000 r.p.m.	MAKINO	1 No.
2.	MAKINO Wire EDM M/C-1000 x 800 x 450	MAKINO	1 No.
3.	Milling M/C 1000 x 350 x 400 fully Automotic	Vernier	1 No.
4	Milling M/C 700 x 300 x 400 fully Automotic	Hindustan	1 No.
5	Heavy Duty Surface Grinder 1000 x 300 x 400 Height wheel size 50 x 40	Gertner	1 No.
6	Heavy Duty Surface Grinder 1000 x 300 x 300 Height wheel size 50 x 40	Jates German	1 No.
7	Lathe 7ft x 6 ft 1440 RPM	Minar	1 No.
8	Radial Driling M/C - RM52 upto (50mm)	Battiboi	1 No.
9	Radial Driling M/C upto (32mm)	S.P.	1 No.
10	Column Drilling Machine		2 No.

Machining Shop

Okamoto Surface Grinder

Okamoto Surface Grinder	L x W x H
TRAVEL (X x Y x Z)	450 x 150 x 350

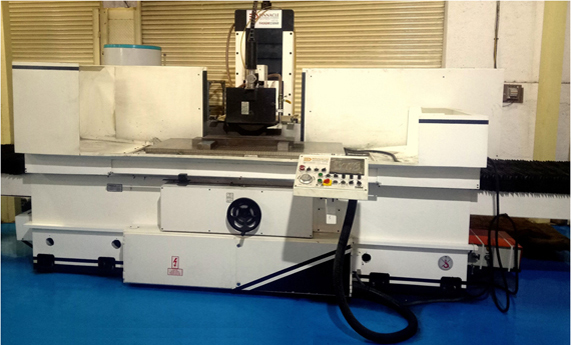

PINNACLE Surface Grinder

PINNACLE Surface Grinder	L x W x H
TRAVEL (X x Y x Z)	1500 x 600 x 700

Zeiss Contura G2

Fixed Bed - Zeiss Contura G2	L x W x H
Size	2000 x 1000 x 600
Year of Purchase	2017
Done by our Approved Vendor	J.J.Precision

Trimos - Vectra Touch V7

Trimos - Vectra Touch V7	L x W x H
Height Range	Upto 1000mm
Year of Purchase	2016
Done by our Approved Vendor	J.J.Precision

Hauser - Jig Grinding

Jig Grinding	L x W x H
Travel	1000 x 500 x 500
Make	Hauser
Done by our Approved Vendor	J.J.Precision

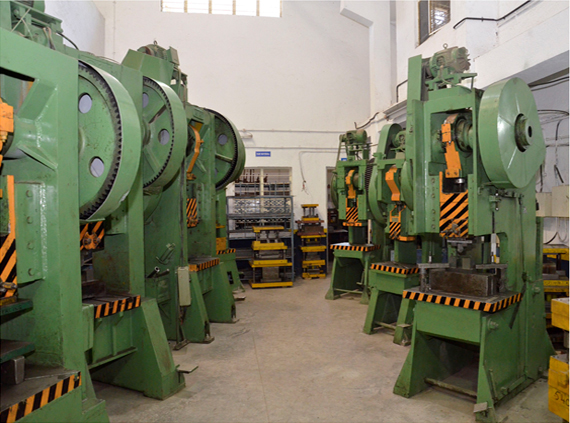

PRESS SHOP

List of Machinery In Tool Room

S.No.	Type Of Machines & Description	Make	Bhosari Unit
1	Makino VMC M/C – 1170 X 510 X 460 – 20,000 R.P.M. – F5	Makino	1 No.
2	Makino VMC M/C – 1170 X 510 X 460 – 12,000 R.P.M. – Ps 95	Makino	1 No.
3	Makino Wire EDM M/C – 1000 X 800 X 450 – U6	Makino	1 No.
4	Makino Wire EDM M/C – 600 X 400 X 250 – U3	Makino	1 No.
5	Sooraj VMC M/C – 1300 X 700 X 650	BFW	1 No.
6	Okamoto Surface Grinder 450 X 200 X 350 – Acc 450 DXA	Okamoto	1 No.
7	Pinnacle Surface Grinder 1500 X 600 X 700	Pinnacle	1 No.
8	Milling M/C 1000 X 350 X 400 Fully Automatic	Vernier	1 No.
9	Milling M/C 700 X 300 X 400 Fully Automatic	Hindustan	1 No.
10	Heavy Duty Surface Grinder 1000 X 300 X 400 Height Wheel Size 50 X 40	Gertner	1 No.
11	Heavy Duty Surface Grinder 1000 X 300 X 300 Height Wheel Size 50 X 40	Jotes German	1 No.
12	Lathe 7 Ft X 6 Ft 1440 Rpm	Minar	1 No.
13	Radial Drilling M/C – Rm52 Up to (50mm)	Batliboi	1 No.
14	Radial Drilling M/C – Rm63 Up to (63mm)	PSG	1 No.
15	Radial Drilling M/C Up to (32mm)	S.P.	1 No.
16	Column Drilling Machine(19mm)	-	2 Nos.

List of Machines In Press Shop – Die Trials and Production

S.No	Type of Machines & Description	Make
1	250 Ton Pillar Mechanical Bed Size 1100 x 1500 Shut Height 550 Stroke Length 150	Ravi	1 No.
2	150 Ton Pillar Type Mechanical Bed Size 600 x 730 Shut Height 350 Stroke Length 120	Basant	1 No.
3	150 Ton Pillar type Mechanical Bed Size 670 x 550 Shut Height 400 Stroke Length 225	Basant	1 No.
4	100 Ton Pillar type Bed Size 850 x 850 Shut Height 500 Stroke Length 200	Kiran	1 No.
5	100 Ton 'C' type Bed Size 850 x 600 Shut Height 400 Stroke Length 125	Ravi	1 No.
6	75 Ton Pillar type Bed Size 540 x 600 Shut Height 340 Stroke Length 100	Basant	1 No.
7	75 Ton 'C' type Bed Size 570 x 490 Shut Height 350 Stroke Length 100	Ravi	1 No.
8	30 Ton 'C' type Bed Size 850 x 450 Shut Height 450 Stroke Length 75	Ravi	1 No.
9	30 Ton Pillar type Bed Size 500x400	Basant	1 No.
10	30 Ton 'C' type Bed Size 500 x 400	Basant	1 No.
11	10 Ton 'C' type Bed Size 450 x 300 Shut Height 250 Stroke Length 50	Kiran	1 No.

List of Machines In Assembly & Welding Shop

S.No.	Type of Machines & Description	Make
A	Welding Section
1	Co2 Welding 200 KVA	Olivia	11 Nos.
2	Tig Welding Machine 200 KVA	Mogra Cosmic	1 No.
3	Projection Welding 50 KVA	Keje Ther	1 No.
B	Machining Section
1	Column Drilling 32mm		1 No.
2	Drilling Machine ¾"(19mm)	Prakash	4 Nos.
3	Radial Drilling 2” (50mm)	Prakash	1 No.
4	Pedestal Grinders	New Indian	4 Nos.
5	Drilling(19mm)	-	2 Nos.
6	Tapping Machines Upto M8	Prabhat	1 No.
7	Belt Grinder	Elmac	1 No.
8	Water Pump 1 HP	-	1 No.
9	Elgi Compressor (15 HP Screw type)	Elgi	1 No.
10	Pipe Cutting M/C	Channan	1 No.
11	Pipe Bending	-	1 No.

S.No.	Monitoring and Measuring Devices
1	Surface Plate 1500 X 1000
2	Trimos V7
3	Height Guage (0-350)
4	Digital Vernier Calliper (0-150)
5	Vernier Calliper (0-1000)
6	Vernier Calliper (0-300)
7	Vernier Calliper (0-15)
8	Micrometer (0-25)
9	Dial Guage
